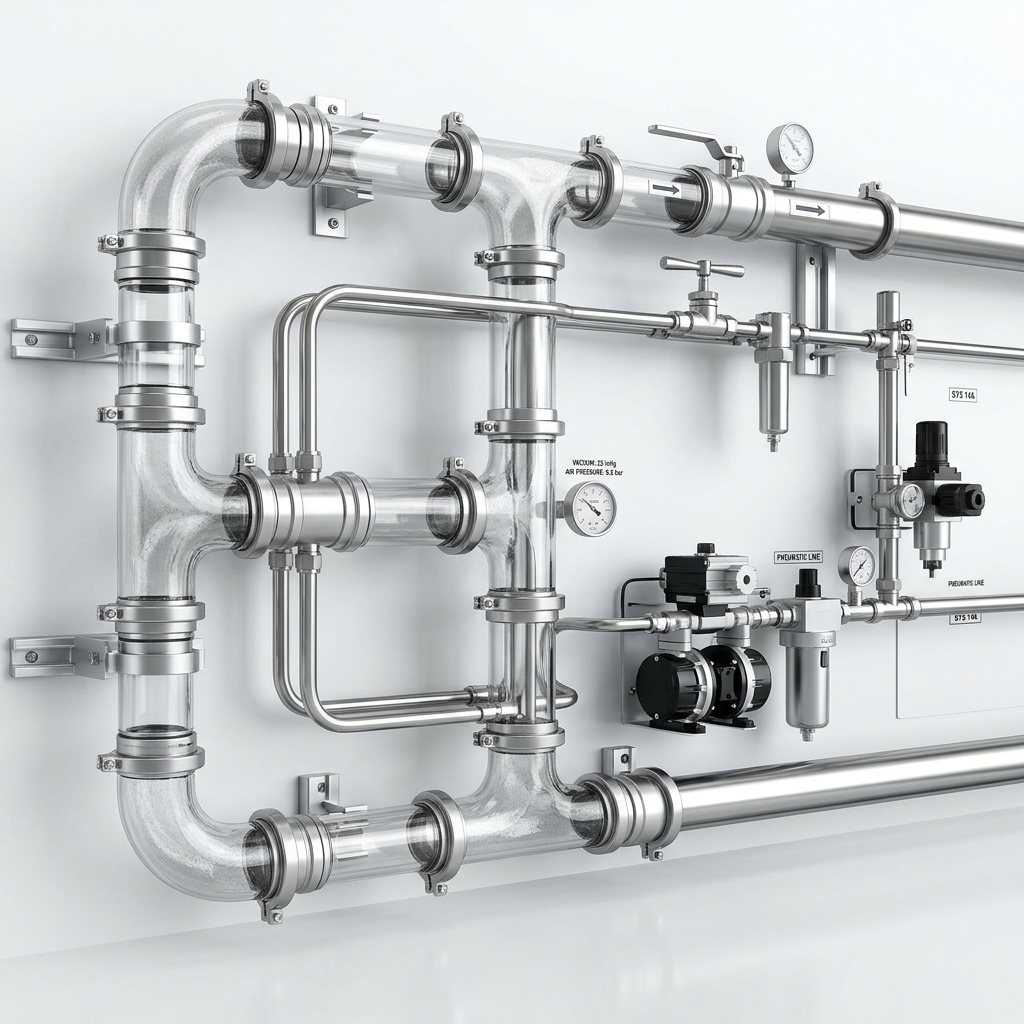

Raw Material & Vacuum Lines
High-wear resistant, leak-free piping networks and coupling stations for central conveying and vacuum systems.
Raw material and vacuum piping systems ensure leak-free, wear-resistant, and contamination-free transport of plastic granules and powder materials in central conveying networks. With options in stainless steel, aluminum, and high-strength glass, they provide long-lasting solutions even for abrasive polymers containing glass fibers. RFID-coded coupling stations and TWIST quick connections prevent material cross-contamination.
- 01
Material is conveyed at high speed inside the piping networks using negative pressure from vacuum blowers.
- 02
Specially hardened steel or glass elbows are utilized at directional changes to prevent wear from abrasive materials.
- 03
TWIST and RFID-coded coupling stations ensure the correct material line is safely connected to the designated molding machine.
- 04
Permanent central vacuum manifolds (up to Ø300 mm) allow highly efficient feeding of multiple receivers from a single source.
- Highly wear-resistant glass and hardened stainless steel pipes and elbows
- Zero material cross-contamination with RFID and TWIST connection technology
- Fast, leak-free, and easy installation via robust pipe connectors and clamps
- Lower energy costs and system footprint through permanent central vacuum networks
Sized to your throughput
- Material Conveying Lines
- Ø38 mm – Ø84 mm standard diameters
- Central Vacuum Manifolds
- Ø100 mm – Ø300 mm distribution networks
- Quick Connect System
- TWIST 1/8 turn lock/unlock
- RFID Sensor Connection
- Profinet / Profibus interface monitoring
Where it goes to work
- Central material conveying networks
- Central vacuum distribution lines
- Raw material coupling stations
- Abrasive (glass-fiber reinforced) polymer transport
